CPU AMD Athlon X2 BE-2350

Photo Gallery

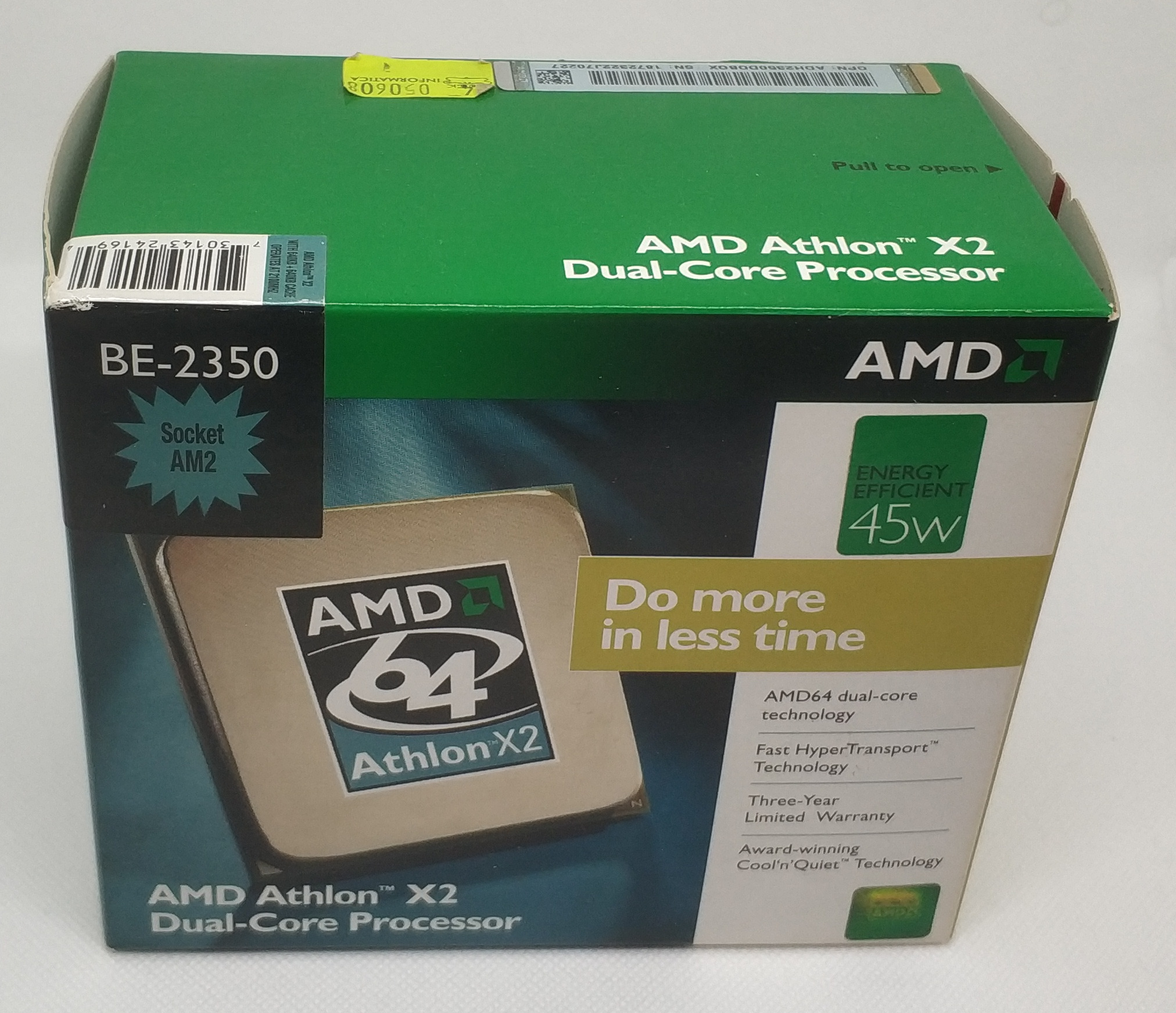

01 - Box front
01 - Box front

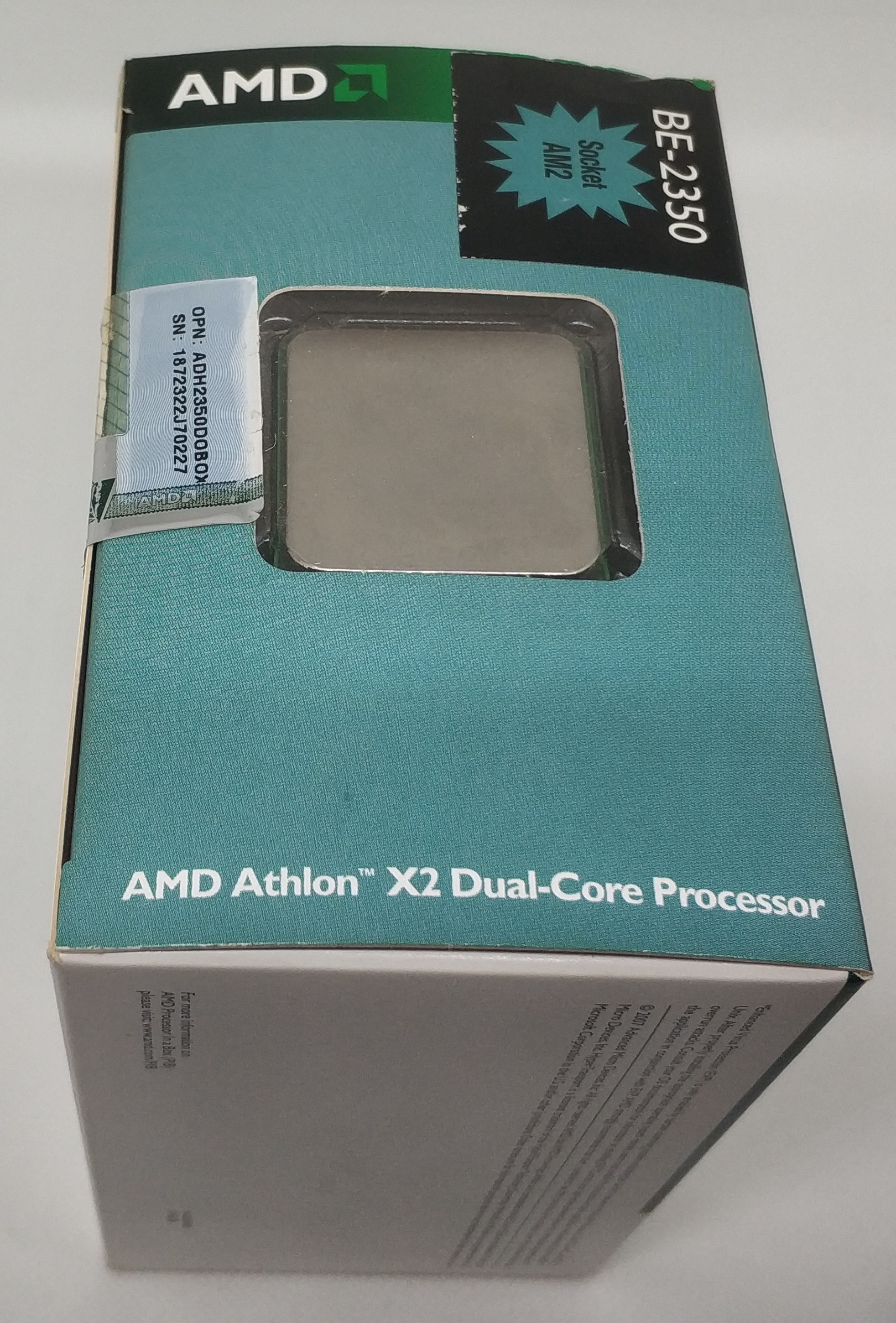

02 - Box cpu side
02 - Box cpu side

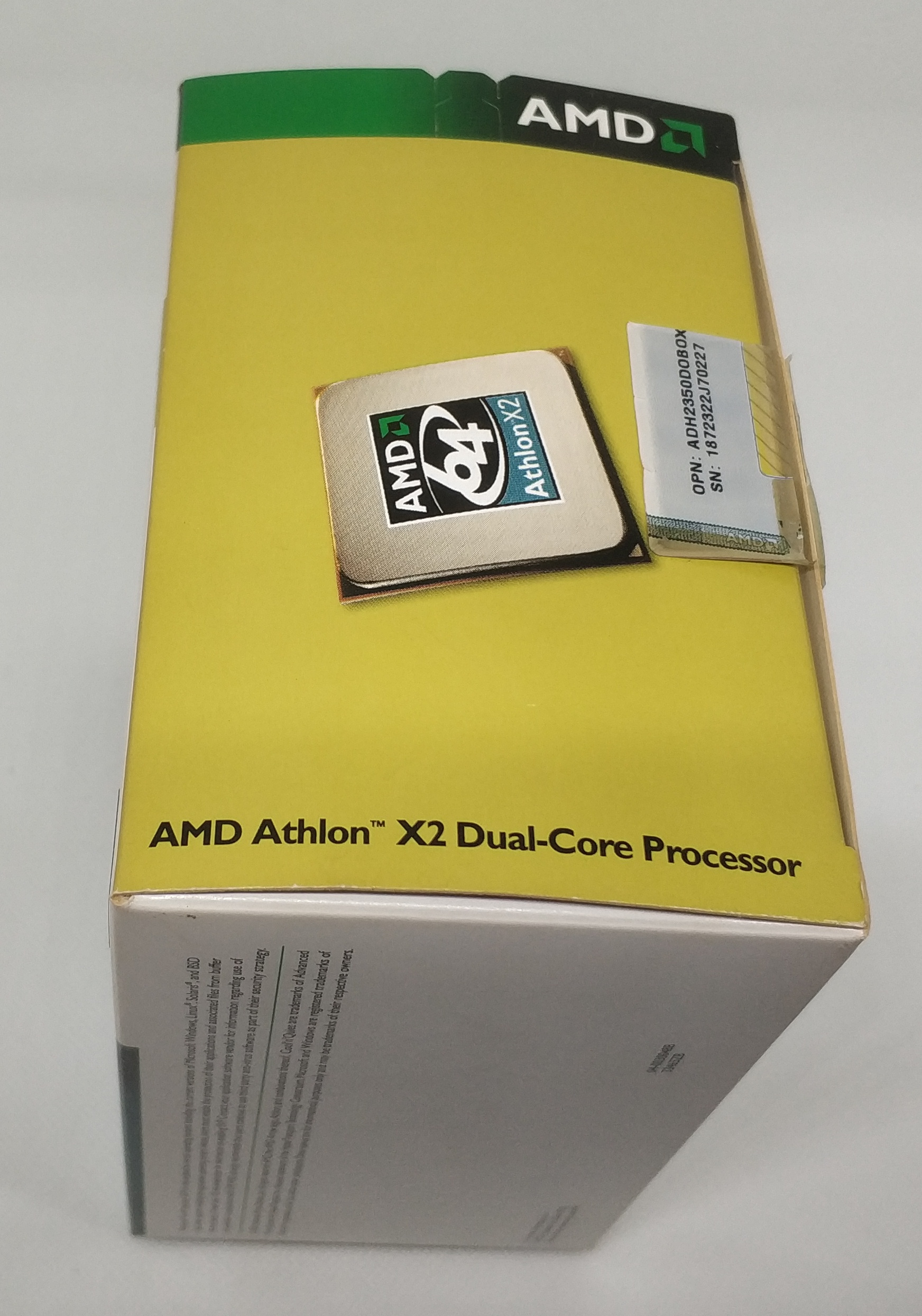

03 - Box side
03 - Box side

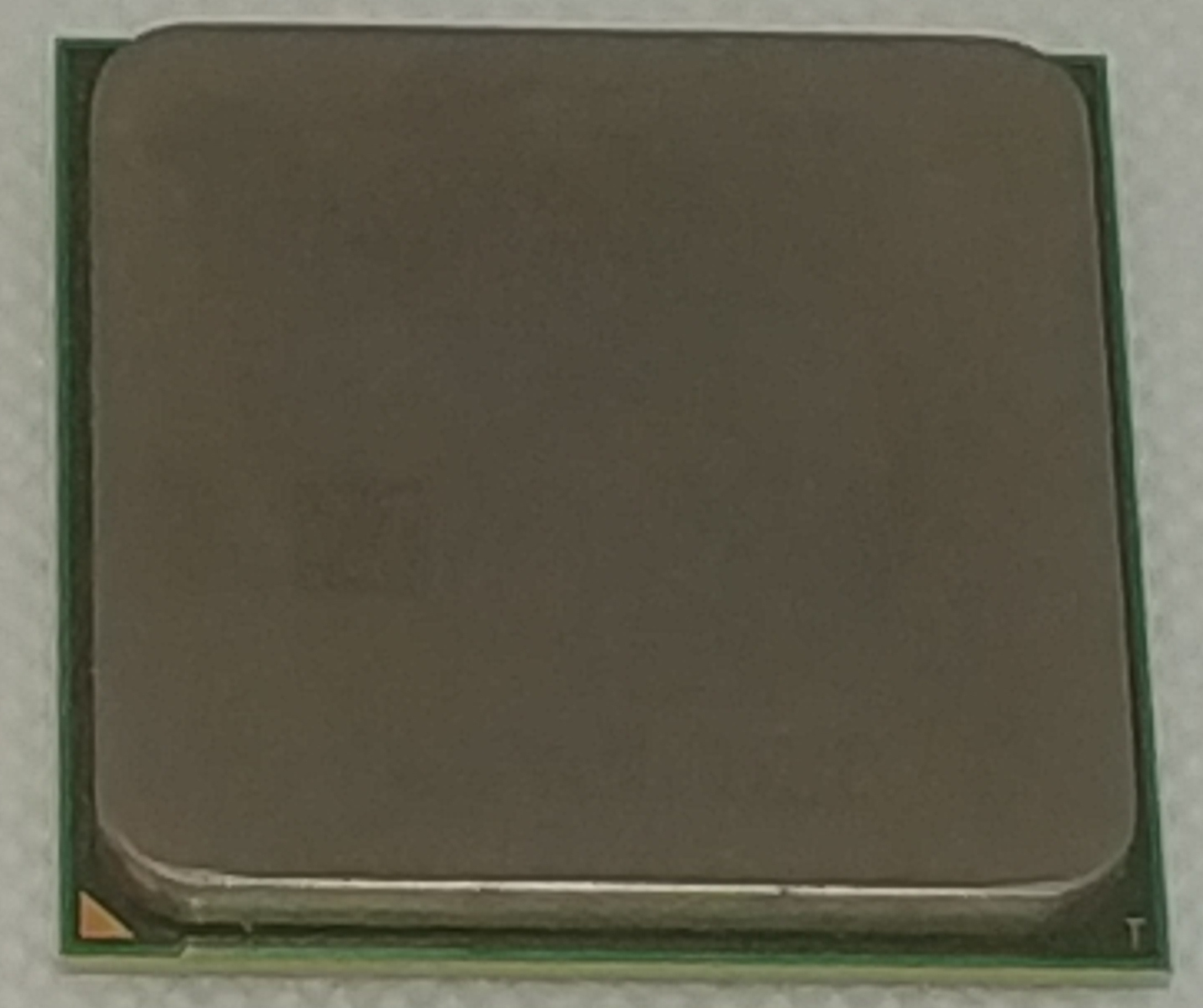

04 - Cpu front
04 - Cpu front

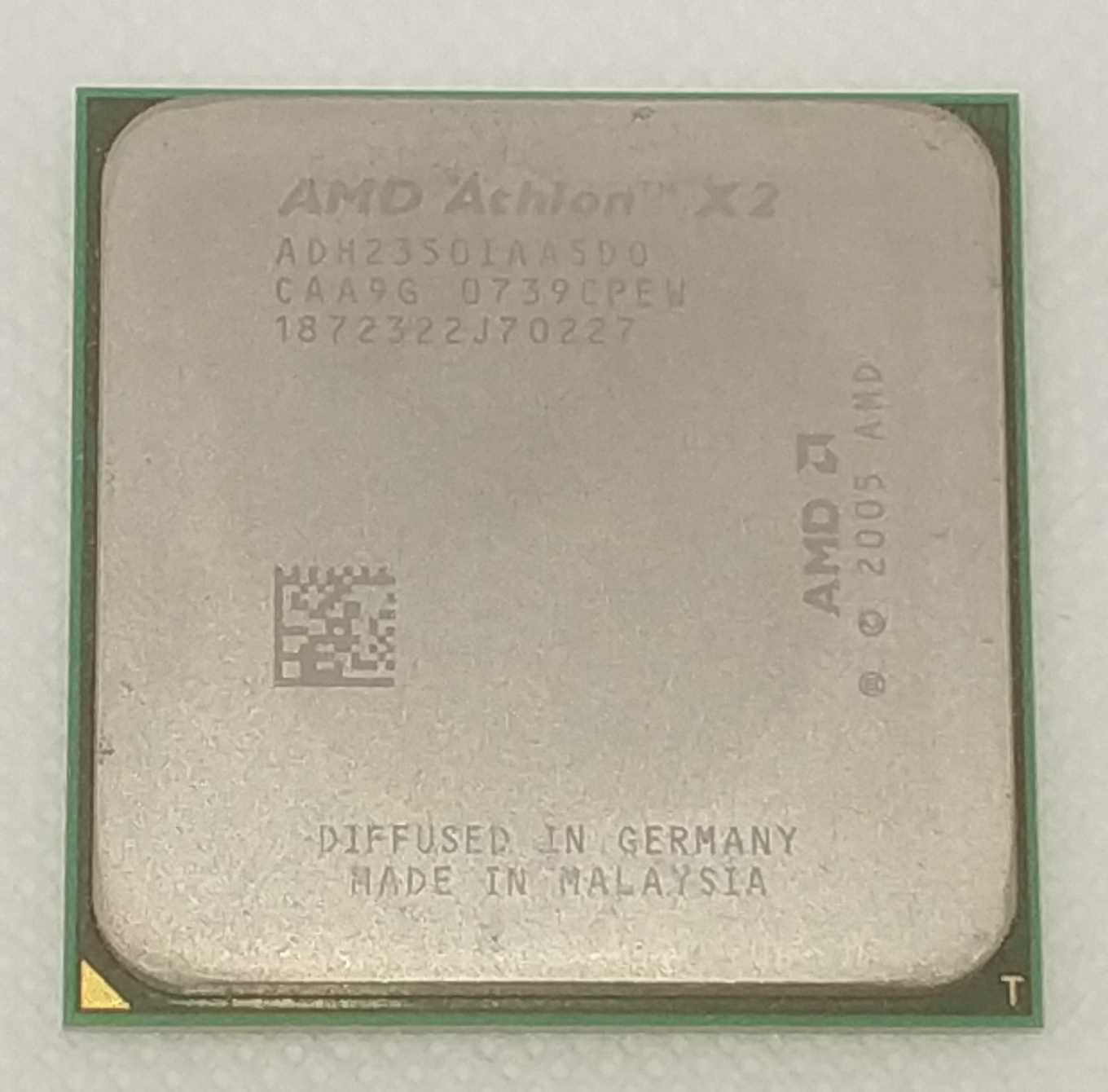

05 - Cpu front
05 - Cpu front

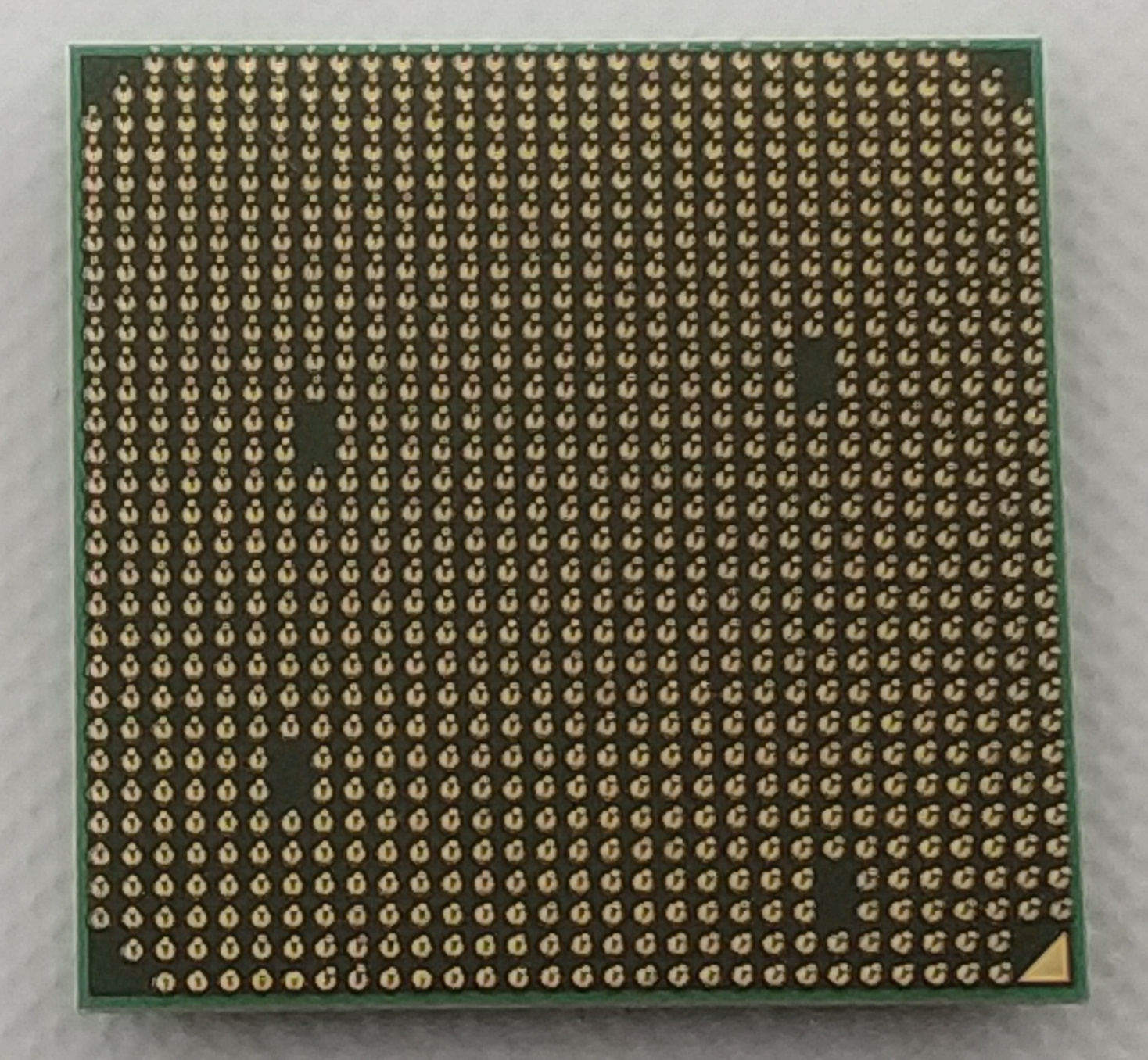

06 - Cpu bottom pins
06 - Cpu bottom pins

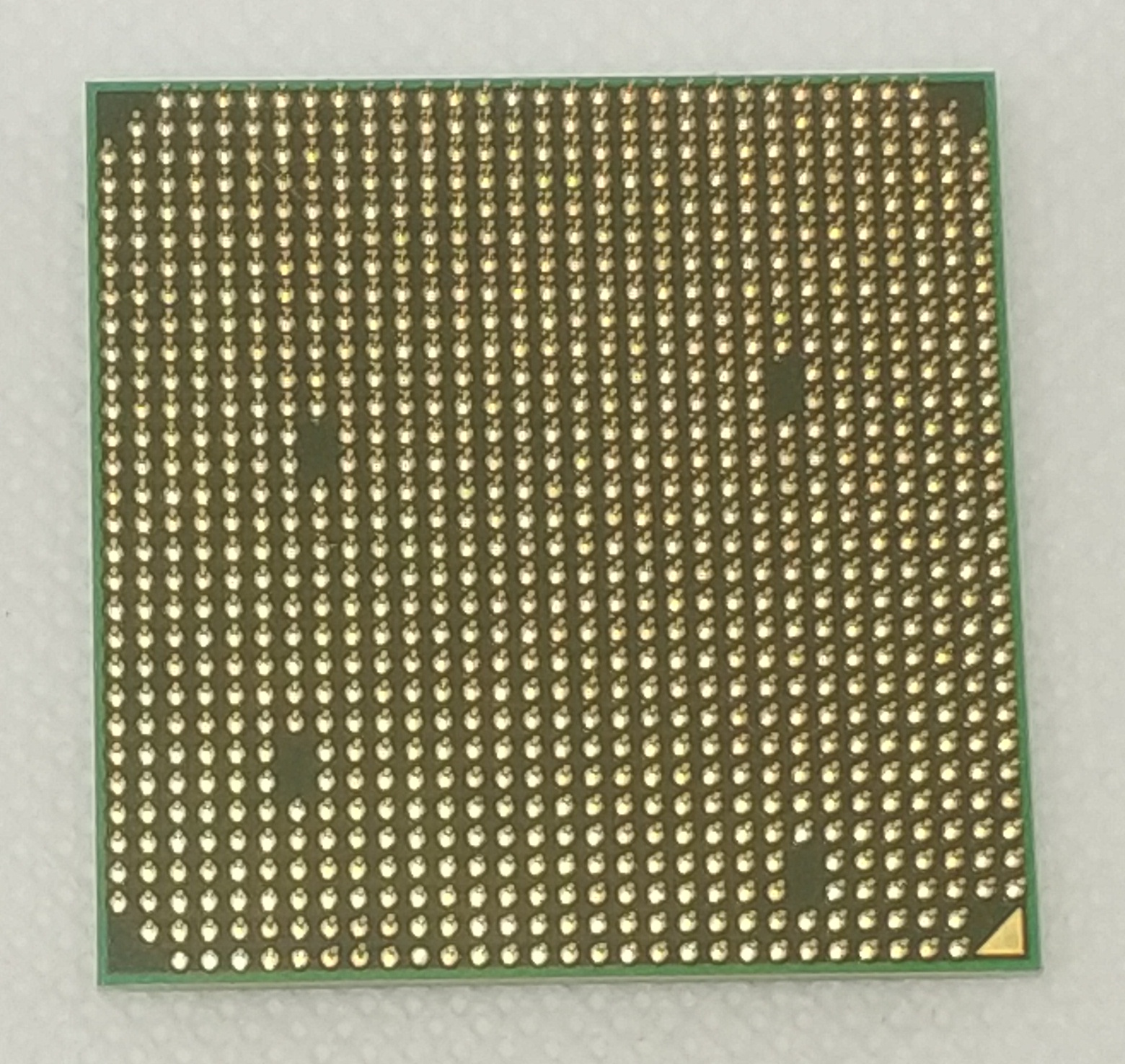

07 - Cpu bottom pins
07 - Cpu bottom pins

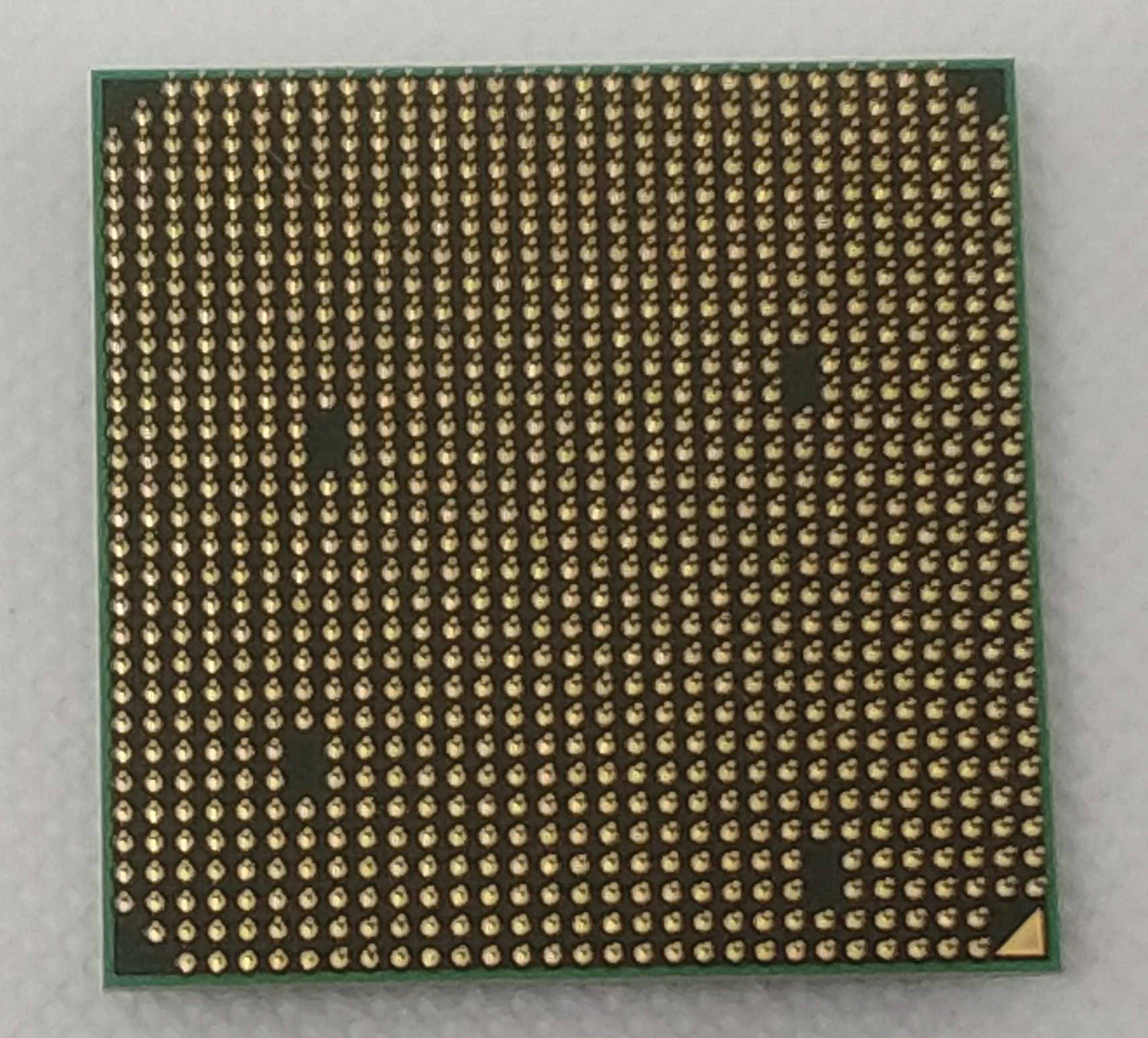

08 - Cpu bottom pins
08 - Cpu bottom pins

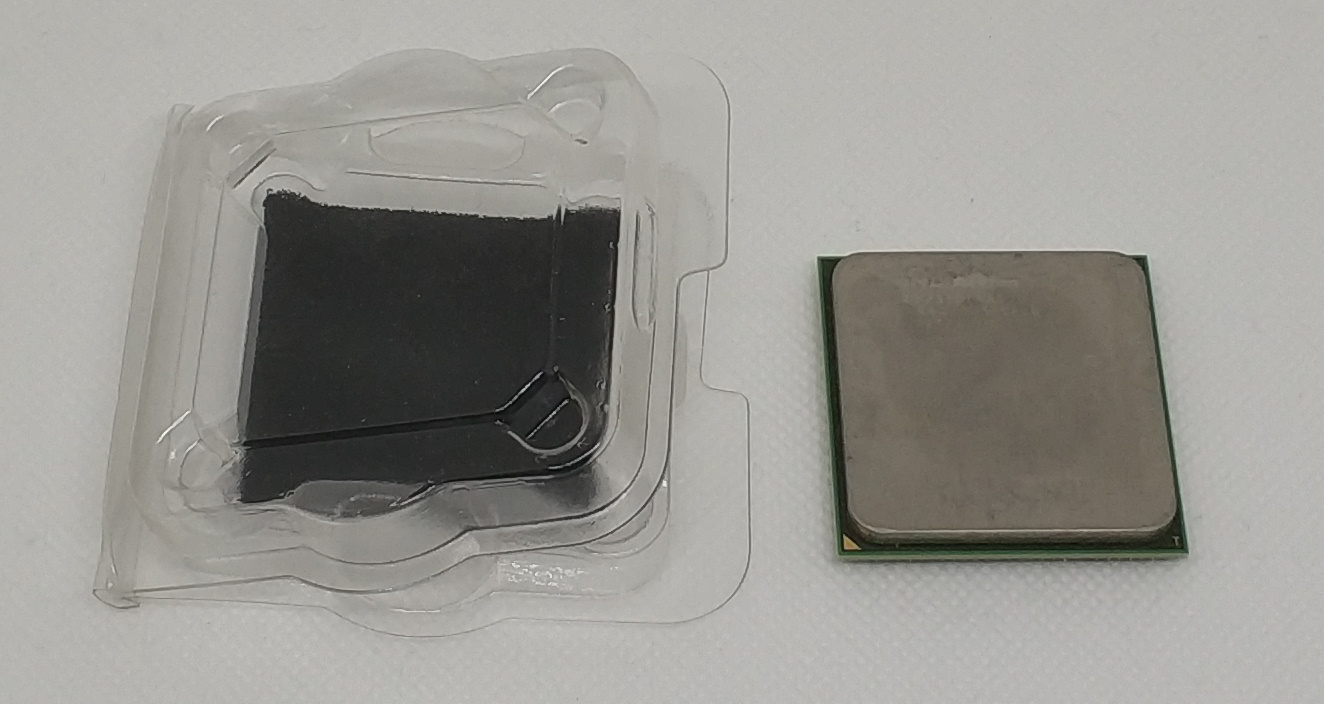

09 - Cpu holder front
09 - Cpu holder front

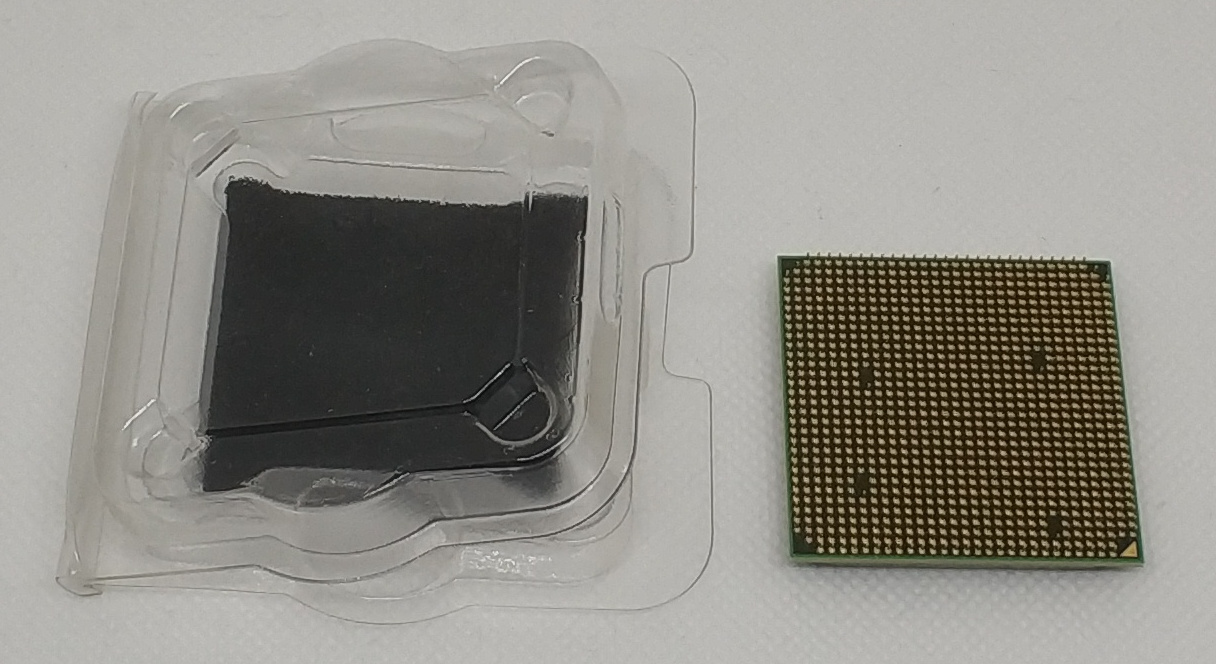

10 - Cpu holder bottom pins
10 - Cpu holder bottom pins

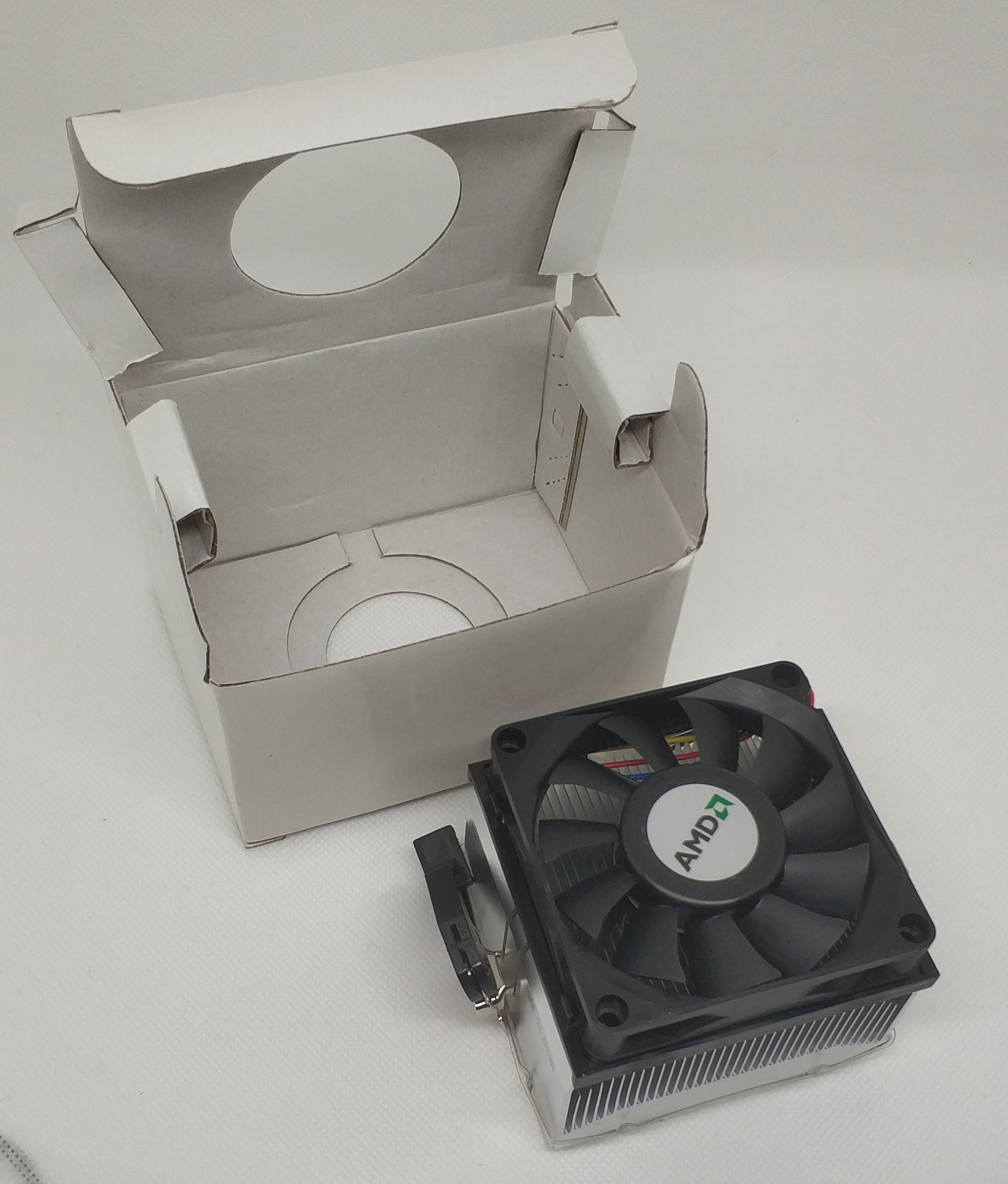

11 - Cpu Fan
11 - Cpu Fan
12 - Coa
12 - Coa
13 - Coa
13 - Coa

Description

CPU AMD Athlon X2 BE-2350 [with box, new fan, coa ]:

State: Used - Working
S/N: 1872322J70227 (all match: cpu, box, coa)
OPN: ADH2350D0BOX
Accessories:
Box, original fan [Mint], cpu holder, Certificate of Autyenticity with sticker [Mint]

Full specs by cpuworld.com


General information
TypeCPU / Microprocessor
Market segmentDesktop
Family
AMD Athlon 64 X2
Model numberBE-2350
CPU part numbers
  • ADH2350IAA5DO is an OEM/tray microprocessor
  • ADH2350DOBOX is a boxed microprocessor with fan and heatsink
Stepping codesCAABG   NAA9G
Frequency2100 MHz
Bus speedOne 1000 MHz 16-bit HyperTransport link (2 GT/s)
Clock multiplier10.5
Package940-pin organic microPGA
SocketSocket AM2
End-of-Life dateLast order date is 2nd quarter 2008
Architecture / Microarchitecture
MicroarchitectureK8
PlatformCartwheel
Processor coreBrisbane
Core steppingBH-G2
CPUID60FB2
Manufacturing process0.065 micron silicon-on-insulator (SOI) technology
221 million transistors
Die118mm2
Data width64 bit
The number of CPU cores2
The number of threads2
Floating Point UnitIntegrated
Level 1 cache size2 x 64 KB 2-way set associative instruction caches
2 x 64 KB 2-way set associative data caches
Level 2 cache size2 x 512 KB 16-way set associative exclusive caches
Physical memory1 TB
Virtual memory256 TB
MultiprocessingUniprocessor
Extensions and Technologies
  • MMX instructions
  • Extensions to MMX
  • 3DNow! technology
  • Extensions to 3DNow!
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • AMD64 / AMD 64-bit technology
  • AMD-V / AMD Virtualization technology
Security Features
  • EVP / Enhanced Virus Protection
Low power features
  • Cool'n'Quiet technology
  • Halt state
  • Stop Grant state
Integrated peripherals / components
Integrated graphicsNone
Memory controllerThe number of controllers: 1
Memory channels (per controller): 2
Memory channels (total): 2
Supported memory: DDR2-800
Maximum memory bandwidth (GB/s): 12.8
Other peripherals
  • HyperTransport 2.0 technology with speeds up to 1000 MHz
Electrical / Thermal parameters
Thermal Design Power45 Watt
